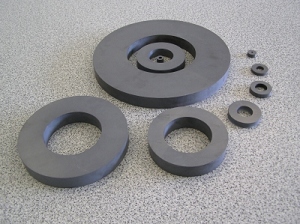

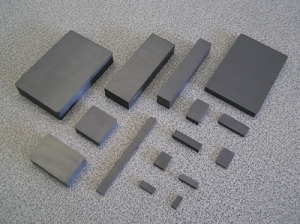

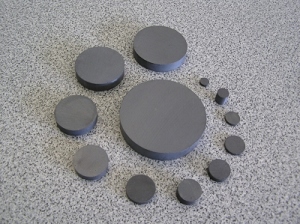

The Ferrite Magnets are fundamental functional materials of electronic industry. It plays a heavy role in electronic industry, electronic information industry, car industry, motorcycle industry etc. Meanwhile, they are also widely used in medical treatment, mining and metallurgy, industrial automation, oil energy industry and civil industry. We are selling the ferrite magnet in low price, but high quality, meanwhile, we can manufacture new tools according to the customers` demand. Waiting for your inquiries, and we will provide good service to you!

>> Magnetic Properties of Ferrite Magnets--- In Chinese Standard:
|
Magnetic Properties of Ferrite Magnets(CN) |
|
Material |
Br |
HcB |
HcJ |
(BH) Max |
|
mT |
KG |
KA/m |
KOe |
KA/m |
KOe |
Kj/M3 |
MGOe |
|
Y10T |
200-235 |
2.0-2.35 |
125-160 |
1.57-2.01 |
210-280 |
2.64-3.52 |
6.5-9.5 |
0.8-1.2 |
|
Y20 |
320-380 |
3.2-3.8 |
135-190 |
1.70-2.38 |
140-195 |
1.76-2.45 |
18.0-22.0 |
2.3-2.8 |
|
Y22H |
310-360 |
3.1-3.6 |
220-250 |
2.77-3.14 |
280-320 |
3.52-4.02 |
20..0-24.0 |
2.5-3.0 |
|
Y23 |
320-370 |
3.2-3.7 |
170-190 |
2.14-2.38 |
190-320 |
2.39-2.89 |
20.0-25.5 |
2.5-3.2 |
|
Y25 |
360-400 |
3.6-4.0 |
135-170 |
1.70-2.14 |
140-200 |
1.76-2.51 |
22.5-28.0 |
2.8-3.5 |
|
Y26H |
360-390 |
3.6-3.9 |
220-250 |
2.77-3.14 |
225-255 |
2.83-3.21 |
23.0-29.0 |
2.9-3.5 |
|
Y27H |
370-400 |
3.7-4.0 |
205-250 |
2.58-3.14 |
210-255 |
2.64-3.21 |
25.0-29.0 |
3.1-3.7 |
|
Y30 |
370-400 |
3.7-4.0 |
175-210 |
2.20-2.64 |
180-220 |
2.26-2.77 |
26.0-30.0 |
3.3-3.8 |
|
Y30BH |
380-390 |
3.8-3.9 |
223-235 |
2.80-2.95 |
231-245 |
2.90-4.21 |
27.0-30.0 |
3.4-3.7 |
|
Y30-1 |
380-400 |
3.8-4.0 |
230-275 |
2.89-3.46 |
235-290 |
2.95-3.65 |
27.0-32.0 |
3.4-4.0 |
|
Y20-2 |
395-415 |
3.95-4.15 |
275-300 |
3.46-3.77 |
310-335 |
3.90-4.21 |
28.5-32.5 |
3.5-4.0 |
|
Y32 |
400-420 |
4.0-4.2 |
160-190 |
2.01-2.38 |
165-195 |
2.07-2.45 |
30.0-33.5 |
3.8-4.2 |
|
Y33 |
410-430 |
4.1-4.3 |
220-250 |
2.77-3.14 |
225-255 |
2.83-3.21 |
31.5-35.0 |
4.0-4.4 |
|
Y35 |
400-410 |
4.0-4.1 |
175-195 |
2.20-2.45 |
180-200 |
2.26-2.51 |
30.0-32.0 |
3.8-4.0 |
>> Magnetic Properties of Ferrite Magnets------In Europe Standard:
|
Magnetic Properties of Ferrite Magnets(EU) |
|
Material |
Br |
HcB |
HcJ |
(BH) Max |
|
mT |
KG |
KA/m |
KOe |
KA/m |
KOe |
Kj/M3 |
MGOe |
|
HF8/22 |
200-220 |
2.00-2.20 |
125-140 |
1.57-1.76 |
220-230 |
2.76-2.89 |
6.5-6.8 |
0.8-1.1 |
|
HF20/19 |
320-333 |
3.20-3.33 |
170-190 |
2.14-2.39 |
190-200 |
2.39-2.51 |
20.0-21.0 |
2.5-2.7 |
|
HF20/28 |
310-325 |
3.10-3.25 |
220-230 |
2.76-2.89 |
280-290 |
3.52-2.64 |
20.0-21.0 |
2.5-2.7 |
|
HF22/30 |
350-365 |
3.50-3.65 |
255-265 |
3.20-3.33 |
290-300 |
3.64-3.77 |
22.0-23.5 |
2.8-3.0 |
|
HF24/16 |
350-365 |
3.50-3.65 |
155-175 |
1.95-2.20 |
160-180 |
2.01-2.26 |
24.0-25.5 |
3.0-3.2 |
|
HF24/23 |
350-365 |
3.50-3.65 |
220-230 |
2.76-2.89 |
230-240 |
2.89-3.01 |
24.0-25.5 |
3.0-3.2 |
|
HF24/35 |
360-370 |
3.60-3.70 |
260-270 |
3.27-2.29 |
350-360 |
4.40-4.52 |
24.0-25.5 |
3.0-3.2 |
|
HF26/16 |
370-380 |
3.70-3.80 |
155-175 |
1.95-2.20 |
160-180 |
2.01-2.26 |
26.0-27.0 |
3.2-3.4 |
|
HF26/18 |
370-380 |
3.70-3.80 |
175-190 |
2.20-2.39 |
180-190 |
2.26-2.39 |
26.0-27.0 |
3.2-3.4 |
|
HF26/24 |
370-380 |
3.70-3.80 |
230-240 |
2.89-3.01 |
240-250 |
3.01-3.14 |
26.0-27.0 |
3.2-3.4 |
|
HF26/26 |
370-380 |
3.70-3.80 |
230-240 |
2.89-3.01 |
260-270 |
3.27-3.39 |
26.0-27.0 |
3.2-3.4 |
|
HF26/30 |
385-395 |
3.85-3.95 |
260-270 |
3.27-2.29 |
280-290 |
3.77-3.89 |
26.0-27.0 |
3.2-3.4 |
|
HF28/26 |
385-395 |
3.70-3.80 |
250-265 |
3.14-3.33 |
260-275 |
3.27-3.45 |
28.0-30.0 |
3.5-3.8 |
|
HF28/28 |
385-395 |
3.70-3.80 |
260-270 |
3.27-3.39 |
280-290 |
3.50-3.60 |
28.0-30.0 |
3.5-3.8 |
|
HF30/26 |
395-405 |
3.95-4.05 |
250-260 |
3.14-3.33 |
260-270 |
3.27-3.39 |
30.0-31.5 |
3.8-3.9 |
|
HF32/17 |
410-420 |
4.10-4.20 |
160-180 |
2.01-2.26 |
165-175 |
2.07-2.20 |
32.0-33.0 |
4.0-4.1 |
|
HF32/22 |
410-420 |
4.10-4.20 |
215-225 |
2.70-2.83 |
220-230 |
2.76-2.89 |
32.0-33.0 |
4.0-4.1 |
|
HF32/25 |
410-420 |
4.10-4.20 |
240-250 |
3.01-3.14 |
250-260 |
3.14-3.27 |
32.0-33.0 |
4.0-4.1 |
>> Magnetic Properties of Ferrite Magnets------In USA Standard:
|
Magnetic Properties of Ferrite Magnets(USA) |
|
Material |
Br |
HcB |
HcJ |
(BH) Max |
|
mT |
KG |
KA/m |
KOe |
KA/m |
KOe |
Kj/M3 |
MGOe |
|
C1 |
230 |
2.3 |
148 |
1.86 |
258 |
3.50 |
8.36 |
1.05 |
|
C5 |
380 |
3.8 |
191 |
2.40 |
199 |
2.50 |
27.0 |
3.40 |
|
C7 |
340 |
3.4 |
258 |
3.23 |
318 |
4.00 |
21.9 |
2.75 |
|
C8 |
385 |
3.85 |
235 |
2.95 |
242 |
3.05 |
27.8 |
3.50 |
|
C8B |
420 |
4.2 |
232 |
2.913 |
236 |
2.96 |
32.8 |
4.12 |
|
C9 |
380 |
3.8 |
280 |
3.516 |
320 |
4.01 |
26.4 |
3.32 |
|
C10 |
400 |
4.0 |
288 |
3.617 |
280 |
3.51 |
30.4 |
3.82 |
|
C11 |
430 |
4.3 |
200 |
2.512 |
204 |
2.56 |
34.4 |
4.32 |
|
